HDB Gate Size Requirements & Regulations in Singapore (2024 Guide)

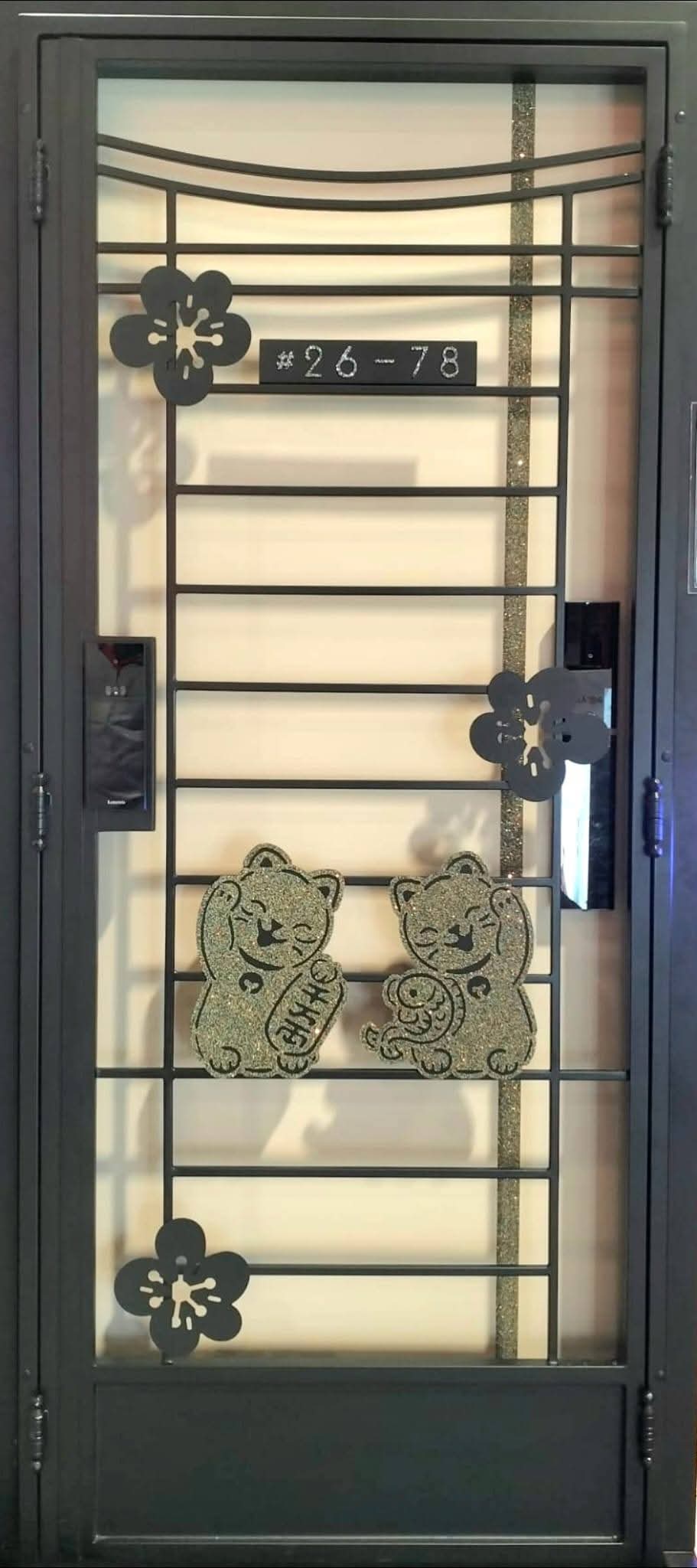

KATO™ Swarovski crystal lucky cat laser cut HDB gate in Singapore

Disclaimer: Information in this guide is based on general industry practice in Singapore as of 2024. Regulations change — always verify with HDB, URA, BCA, or a licensed contractor for your specific property before ordering.

What You Need to Know Before Buying an HDB Gate

Buying a new gate for your HDB flat or condo is more involved than simply picking a design you like. Singapore's Housing & Development Board (HDB) sets specific guidelines on gate dimensions, materials, and installation — and non-compliant gates can result in mandatory removal at your own cost. This guide covers everything you need to measure, check, and confirm before placing an order.

HDB Gate Regulations: The Key Rules

HDB regulates gate installations under its renovation guidelines. The main requirements are:

  • Gate height: Must not exceed the height of your main door frame. Gates that extend above the door frame or into common corridor airspace are not permitted.
  • Gate projection: The gate must not project beyond the boundary of your unit into the common corridor when open or closed.
  • No sharp protrusions: Decorative elements must not have sharp edges or points that could injure residents or visitors in the common corridor.
  • Replacing an existing gate: Simply changing your gate to a new design does not require HDB approval, as long as the new gate complies with the guidelines above.
  • Renovation contractor: If gate installation is part of broader renovation works, those works must be carried out by an HDB-registered renovation contractor. There is no requirement to purchase your gate from an approved vendor — you are free to order from any fabricator or supplier of your choice.

Note: Regulations are updated periodically. Always verify the latest requirements directly with HDB or your renovation contractor before ordering.

Standard HDB Gate Sizes in Singapore

While every unit is slightly different, most HDB flats follow these approximate opening dimensions:

  • 3-room flat: ~850mm – 900mm wide × 2,100mm high
  • 4-room flat: ~900mm – 950mm wide × 2,100mm high
  • 5-room / Executive flat: ~950mm – 1,050mm wide × 2,100mm high

These are rough guides only. Your actual opening may differ depending on the block age, renovation history, and whether a false wall or door frame has been added. Always measure your own opening before ordering.

How to Measure Your Gate Opening

Take three measurements for both width and height, and use the smallest reading:

  1. Width: Measure at the top, middle, and bottom of the opening between the door frame rebates (the inner edge where the gate will sit).
  2. Height: Measure on the left, centre, and right from the floor to the underside of the top frame.
  3. Depth of rebate: Note how deep the frame recess is — this affects hinge placement and whether a flush or overlap gate is needed.
  4. Floor clearance: Check for any floor finishes, tiles, or thresholds that reduce the usable height.

Provide these measurements to your gate supplier. A reputable supplier will also conduct a site survey before fabrication.

HDB vs Landed Property: What's Different?

Landed properties (terraces, semi-detached, bungalows) are not governed by HDB guidelines, but gate and boundary wall heights are subject to URA (Urban Redevelopment Authority) planning rules, which vary by property type and zone. Key points to be aware of:

  • Since gates typically form part of the boundary structure, they are generally assessed together with boundary wall height limits under URA guidelines. The applicable height limit depends on your specific property type and location — check with your contractor or URA directly before ordering.
  • Replacing an existing gate: Changing your gate to a new design generally does not require approval for landed properties, provided the new gate is within the same footprint and swing direction as the original.
  • Outward-opening swing gates: Whether a swing gate is permitted to open outward depends on the original approved plans for your property and may vary by estate. If you are unsure, check with your contractor or estate management before ordering.
  • Sliding gates: Sliding gates do not require BCA (Building and Construction Authority) approval and are a popular choice for landed driveways.
  • Do you need a licensed contractor for landed renovations? For straightforward gate replacements on landed properties, a licensed contractor is generally not required. However, if the installation involves structural changes to the boundary wall, a BCA-licensed contractor is needed. Any electrical works — such as wiring for an automated gate — must always be carried out by a licensed electrical worker, regardless of property type.
  • Some private estates have their own MCST (Management Corporation Strata Title) guidelines that may impose additional restrictions — check with your estate management before ordering.

As landed property rules vary significantly by zone and property type, always verify the requirements applicable to your specific address with a licensed contractor or URA before proceeding.

Choosing the Right Gate Style for HDB

Within HDB's guidelines, you still have a wide range of design options. Popular choices include:

Finish upgrade: All gate types above are available with an optional PU (polyurethane) spray paint top coat — a worthwhile upgrade for better adhesion, colour retention, and long-term resistance to Singapore's humid tropical climate.

Ready to Explore Gate Options?

Browse our full range of HDB-compatible gate collections below, all fabricated to Singapore's residential standards and available for site survey and professional installation.
